Mobile Engineering & Financial Logic·Cross-Platform Mobile Application Development

WealthFlow

A React Native finance app for transactions, budgets and savings, with Supabase and PostgreSQL access policies.

Built as a working showcase that can serve as a foundation for a customized business implementation.

Connect About This Project Explore WealthFlow Source code

114

Jest Tests

11 suites covering financial logic, authentication, services and utilities

6 Tables

PostgreSQL RLS

Database-level user isolation enforced with auth.uid()

React Native 0.76

Expo SDK 52

Cross-platform mobile architecture with native build hardening

Atomic RPC

Savings Contributions

Database-side ownership validation and balance mutation

Inspect the evidence

Review the implementation, data model and tests in the repository.

Source & README Commit history

MY CONTRIBUTION

What I built

Independent project

Relational data architecture for transactions, categories, budgets, and savings goals backed by Supabase PostgreSQL
Database-level Row Level Security (RLS) enforcing strict user-scoped isolation across all 6 financial tables
Persistent authentication lifecycle with AsyncStorage token hydration and decoupled initialization states
Monthly category budgets with 3-tier threshold warning calculations (healthy, warning at 80%, over budget at 100%)
Target-driven savings goals with relational contribution tracking and mathematical milestone verification
Centralized multi-currency formatting engine across 7 global currencies handling currency-specific decimal rules
Structured JSON personal financial data export via Expo FileSystem and native OS share sheet integration
Automated verification harness containing 114 Jest tests across 11 test suites covering arithmetic, formatting, and auth
Native Android compilation architecture with reproducible codegen and Babel runtime patches via patch-package

01 / The Business Problem

Client-Side Security Limits, Session Drift & Calculation Errors

Mobile finance tools often rely purely on client-side filtering (where user_id = ...) as their primary boundary, leaving user databases vulnerable to API inspection and tampering. Furthermore, naive session hydration frequently causes mobile navigation flickers or drops authenticated state on app restart, while floating-point arithmetic and inconsistent currency decimals introduce subtle rounding drifts across transactions, budgets, and savings goals.

02 / The Solution

Database-Level RLS, Hydrated Sessions & Verified Arithmetic

WealthFlow establishes PostgreSQL Row Level Security (RLS) policies using auth.uid() across all 6 database tables, ensuring the database engine rejects unauthorized reads and writes regardless of client behavior. The mobile authentication lifecycle decouples initial AsyncStorage session restoration from interactive action states to preserve React Navigation stability, while a deterministic calculation engine standardizes multi-currency decimals and budget thresholds across 114 automated Jest tests.

03 / PRODUCT EXPERIENCE

Core Capabilities & Workflow

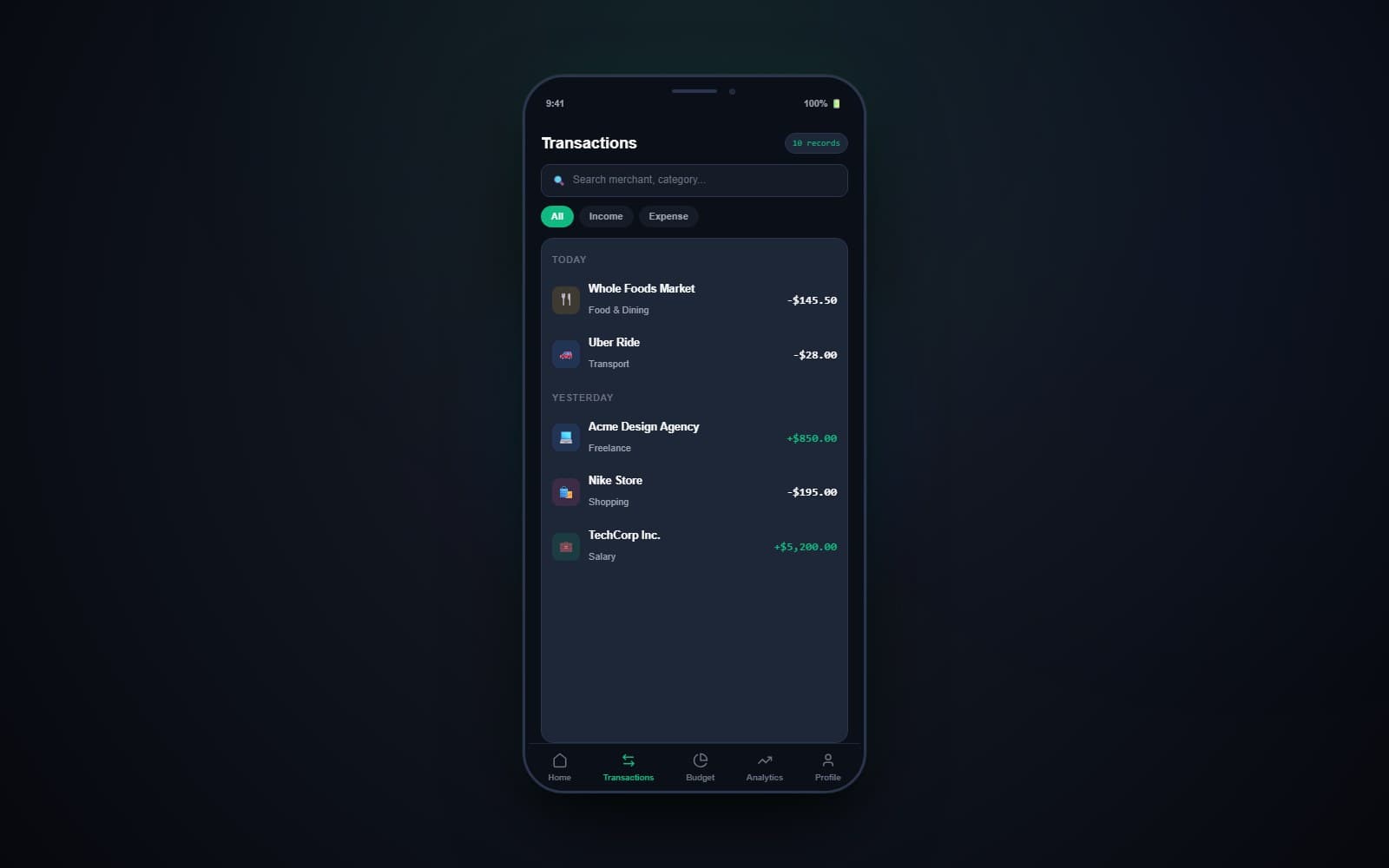

MODULE 01

Transaction Ledger & Category Resolution

Chronological logging of income and expense transactions with canonical category resolution, merchant details, relative date grouping, and real-time search.

Practical Value:

Computes total net cash balance deterministically as total income minus total expenses, preventing drift across ledger reviews.

Chronological transaction ledger with merchant categorization, flow type segmentation, and real-time search

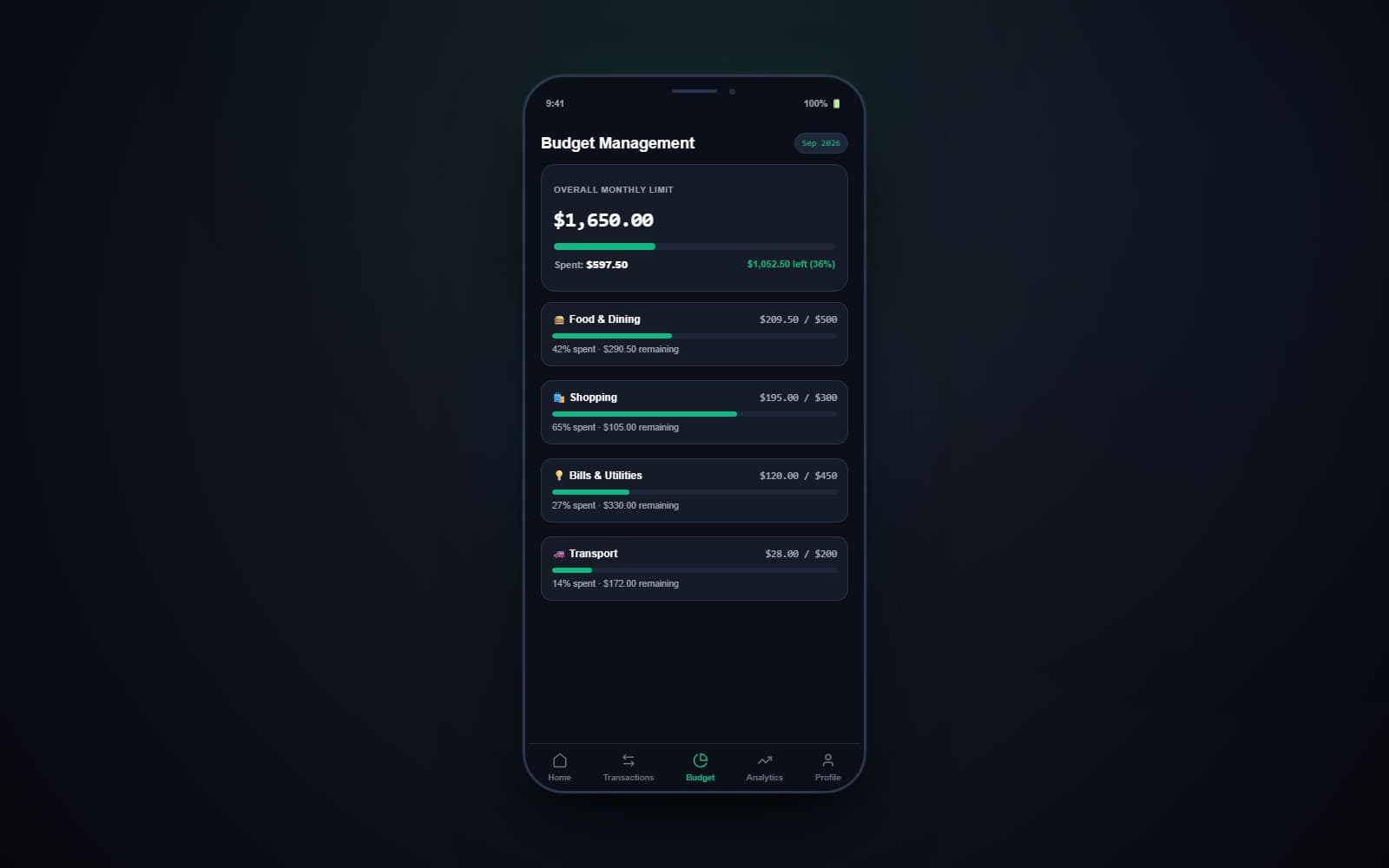

MODULE 02

Monthly Budgets & Consumption Thresholds

Category-specific monthly expenditure caps evaluated against real-time spending with three discrete status thresholds: healthy, warning (>= 80%), and over budget (>= 100%).

Practical Value:

Alerts users before budget ceilings are breached through visual progress indicators and rule-based financial insight notifications.

Category-specific budget allocation with real-time consumption progress and threshold warnings

MODULE 03

Savings Targets & Relational Contributions

Target-driven savings goals tracking current balance against target amounts, with itemized contribution records enforced by database foreign-key checks.

Practical Value:

Maintains mathematical consistency between individual deposits and goal balances, protected by database RLS rules verifying goal ownership.

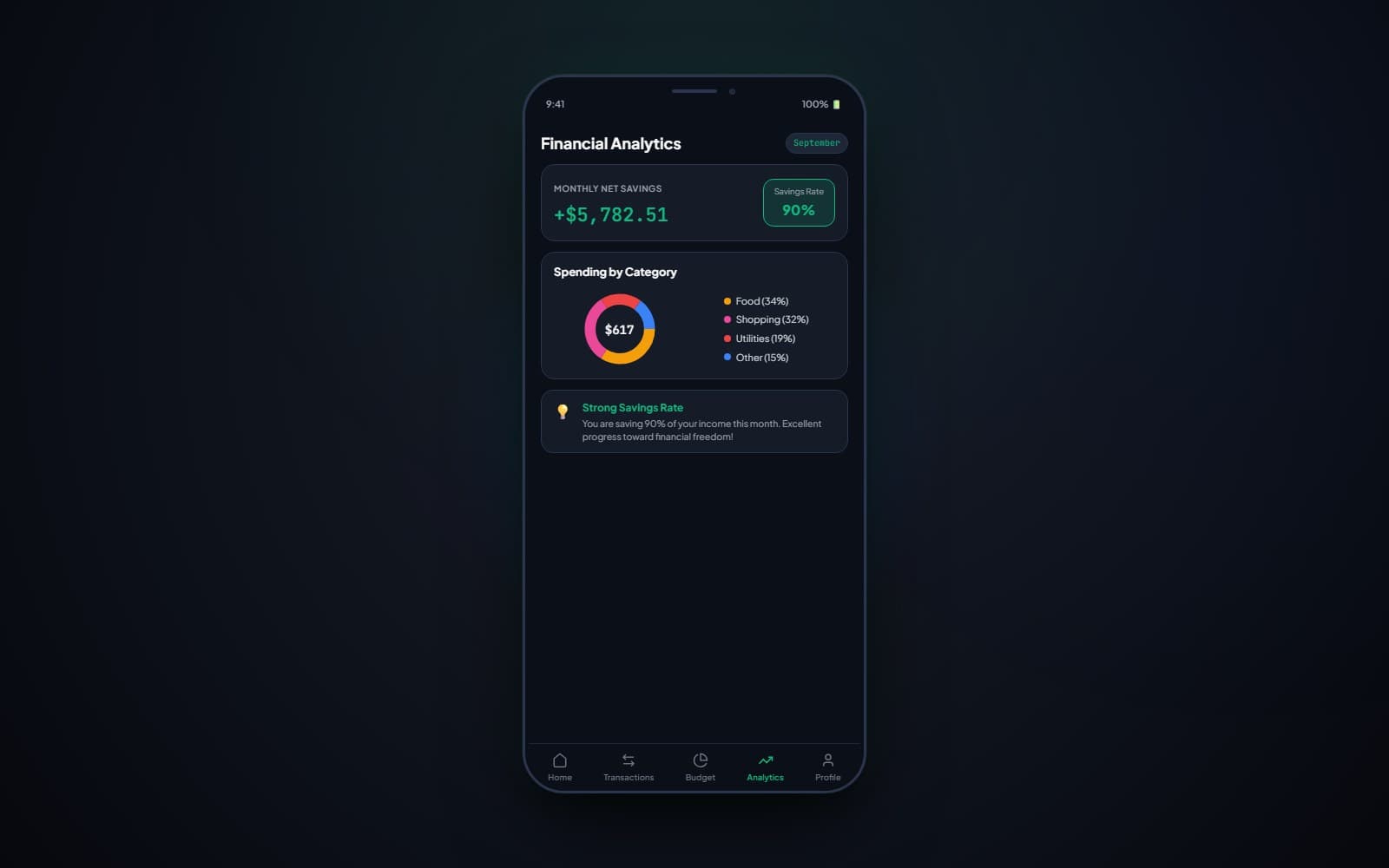

MODULE 04

Financial Analytics & Trend Telemetry

Deterministic monthly cash flow trends, savings rate calculations, and categorical expense breakdown visualization powered by React Native SVG.

Practical Value:

Generates objective financial observations (e.g. savings rate evaluation, top expense drivers) calculated directly from recorded transactions.

Financial analytics dashboard featuring net savings calculation, savings rate benchmark, and SVG category distribution

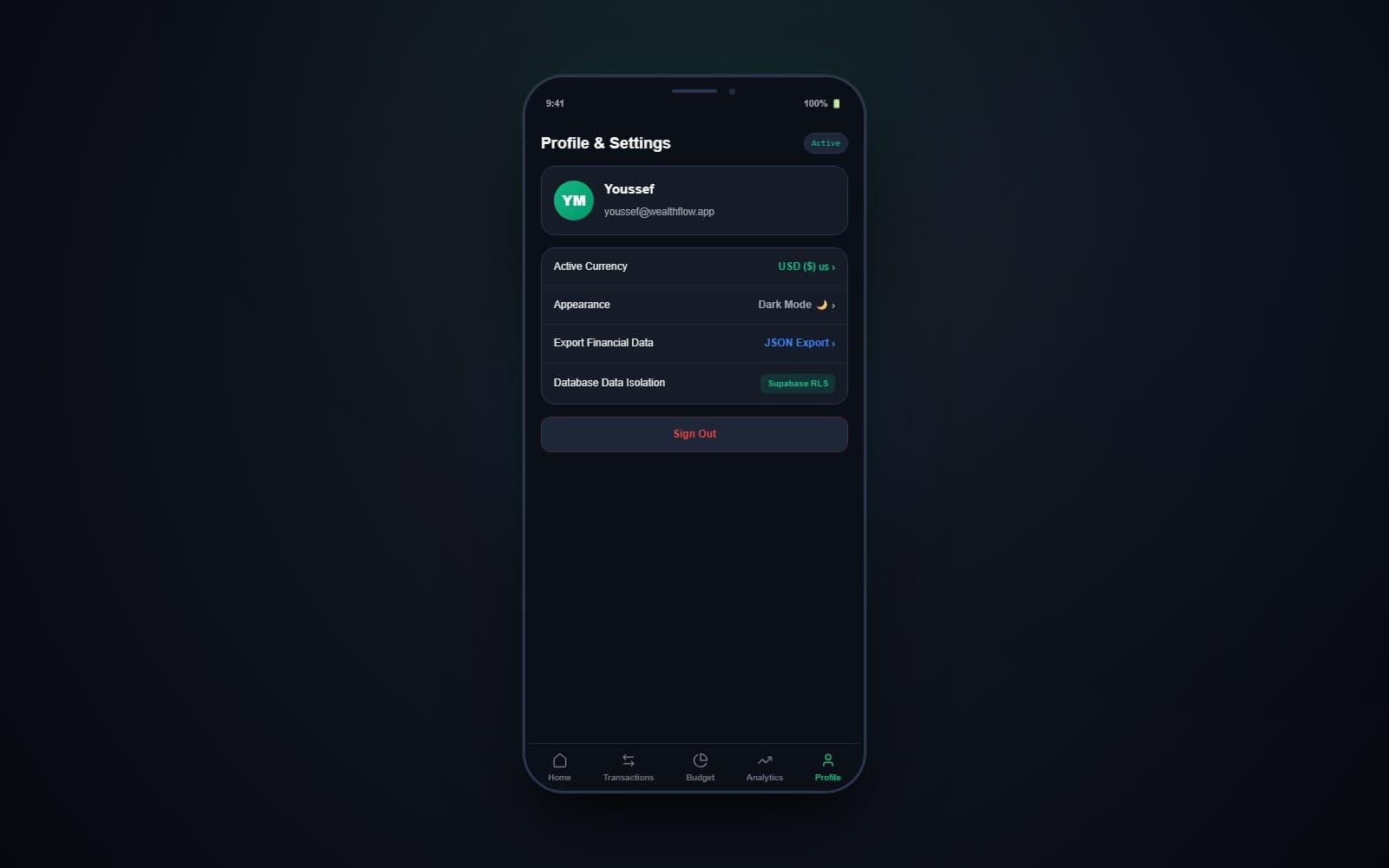

MODULE 05

Multi-Currency Formatting & Native Data Export

Centralized formatting engine across 7 global currencies handling currency-specific decimal rules (e.g. 0 decimals for JPY, 2 for USD/EUR), paired with structured JSON export via Expo FileSystem and Sharing.

Practical Value:

Allows complete personal data portability by writing a validated JSON backup to the mobile device cache and invoking the native OS share sheet.

Personal finance preferences with 7 global currencies, theme selection, and complete JSON data export

04 / TECHNICAL ARCHITECTURE

Engineering Foundation & Architecture

Mobile Authentication Lifecycle & Navigation Decoupling

On mobile clients, naive authentication listeners frequently produce race conditions when session hydration from AsyncStorage overlaps with user-triggered login or logout actions, causing React Navigation root containers to remount and lose state. WealthFlow solves this by maintaining a dedicated initialization flag (isInitializing) that guards navigation mounting until getSession() resolves. Furthermore, onAuthStateChange listeners deduplicate INITIAL_SESSION and redundant sign-in events during hydration, while refs track intentional logout to distinguish user sign-out from token expiration without triggering erroneous redirect loops.

Database-Level User Isolation via PostgreSQL Row Level Security

Because mobile applications run in untrusted user environments, filtering queries client-side with .eq('user_id', user.id) provides zero defense against malicious request tampering or API inspection. WealthFlow establishes security strictly at the database layer using PostgreSQL Row Level Security (RLS) on all 6 tables: profiles, categories, transactions, budgets, savings_goals, and savings_contributions. Every query is scoped by auth.uid() = user_id, while contribution insertions enforce relational foreign-key validation ensuring the referenced savings goal also belongs to the authenticated user.

Native Android Codegen & Module Interop Patches

During native compilation on React Native 0.76.9 and Expo SDK 52, Android builds failed due to upstream toolchain incompatibilities: @react-native/codegen failed when parsing TypeScript Readonly and ReadonlyArray type annotations on component props, while @babel/runtime triggered CommonJS/ESM interop bundling errors with interopRequireDefault. Rather than maintaining unstable library forks, reproducible patches were generated using patch-package (@react-native+codegen+0.76.9.patch and @babel+runtime+7.29.7.patch) and executed automatically via the npm postinstall lifecycle, ensuring reliable native build compilation.

Verified Financial Calculation Engine (114 Jest Tests across 11 Suites)

Personal finance software requires deterministic numerical integrity to prevent calculation drift across transactions, monthly budgets, and multi-currency formatting. WealthFlow centralizes core calculations in pure utility modules verified by 114 automated Jest tests across 11 test suites. The test harness deterministically validates cash balance calculation (income minus expenses), month-to-date category allocations, budget status transitions (healthy, warning at 80%, over-budget at 100%), savings milestone percentages, currency-specific decimal formatting (e.g. 0 decimals for JPY, 2 for USD), and native file export serialization.

Technologies Used

FUNCTIONAL ROLE

React Native 0.76 & Expo SDK 52

Cross-platform mobile client with native Android compilation, typed navigation, and responsive component architecture

TypeScript 5.3

End-to-end type safety covering financial transaction payloads, category schemas, and navigation route parameters

PostgreSQL & Supabase RLS

Relational persistence enforcing database-level Row Level Security (RLS) policies scoped by auth.uid() across 6 tables

Supabase Auth & AsyncStorage

Persistent JWT session management with token restoration across mobile backgrounding and app restarts

Jest Test Harness (114 Tests)

Automated test suite across 11 suites verifying financial calculations, currency formatting, and auth state transitions

Native Toolchain & patch-package

Reproducible patches resolving React Native 0.76 codegen type parser issues and Babel runtime ESM/CJS interop

05 / VERIFIED IMPLEMENTATION

Engineering Evidence & Mobile Architecture

Database-level Row Level Security, atomic financial mutations, and native toolchain hardening verified directly in the codebase.

DATABASE-LEVEL SECURITY BOUNDARY

PostgreSQL Row Level Security (RLS) Isolation

auth.uid() Policy Engine

01. CLIENT INGRESS

Mobile Client

React Native 0.76 & Supabase JS

02. IDENTITY TOKEN

Supabase JWT

Bearer token with verified sub claim

03. CONTEXT INJECTION

auth.uid()

Authoritative user ID passed to engine

04. RLS ENGINE

Policy Evaluation

USING (user_id = auth.uid())

05. ISOLATED DATA

User Rows

Zero cross-user data leakage

DATABASE-LEVEL ISOLATION INVARIANT

Data isolation is enforced at the PostgreSQL engine level, not trusted to mobile client code. WealthFlow enables Row Level Security (RLS) across all 6 relational tables. Even if client-side logic were intercepted or tampered with, the database engine strictly rejects any query attempting to access records outside the authenticated user's auth.uid() scope.

RELATIONAL FINANCIAL SCHEMA

6 Relational Tables & Ownership Constraints

PostgreSQL 15 · ON DELETE CASCADE

01. Profilesauth.uid() = id

public.profiles

Primary key bound to auth.users(id). Stores active currency preference and theme mode.

02. CategoriesDefault vs Custom

public.categories

15 canonical global default categories plus user-scoped custom categories isolated by user_id.

03. Transactionsuser_id = auth.uid()

public.transactions

Income and expense records with amount > 0 check, category reference, and TIMESTAMPTZ timestamps.

04. BudgetsUNIQUE(user, cat, period)

public.budgets

Monthly category limits with unique constraint preventing duplicate allocations per category.

05. Savings Goalsuser_id = auth.uid()

public.savings_goals

Savings targets with positive target amount constraint, tracked current balance, and target date.

06. Savings ContributionsParent Goal Check

public.savings_contributions

Contribution audit log linked to parent goal with cross-user insertion verification in RLS.

EVIDENCE 01

Cross-user contribution injection guard

The RLS policy verifies user identity and asserts that the target savings goal belongs to the same user, preventing foreign goal injections.

-- supabase/schema.sql

-- Relational sub-resource insertion guard

CREATE POLICY "Savings contributions insert authorization check"

ON public.savings_contributions

FOR INSERT WITH CHECK (

user_id = auth.uid() AND EXISTS (

SELECT 1 FROM public.savings_goals

WHERE id = goal_id AND user_id = auth.uid()

)

);

EVIDENCE 02

Atomic database-side contribution RPC

The PL/pgSQL function coordinates contribution logging and goal balance mutation within a single atomic database transaction.

-- public.add_savings_contribution(p_goal_id, p_amount...)

-- 1. Assert goal ownership & positive amount

SELECT user_id INTO v_goal_owner FROM public.savings_goals WHERE id = p_goal_id;

IF v_goal_owner <> auth.uid() THEN RAISE EXCEPTION 'Unauthorized'; END IF;

-- 2. Atomic multi-table mutation

INSERT INTO public.savings_contributions (user_id, goal_id, amount)

VALUES (auth.uid(), p_goal_id, p_amount);

UPDATE public.savings_goals

SET current_amount = current_amount + p_amount, updated_at = NOW()

WHERE id = p_goal_id;

MOBILE AUTHENTICATION LIFECYCLE

Async Hydration & Session State Machine

AsyncStorage · autoRefreshToken

01. LAUNCH

App Launch

Context mount & token read

02. HYDRATION

AsyncStorage

getSession() hydrates token

03. SPLASH GUARD

RootSplash

Prevents guest screen flash

04. DEDUPLICATION

INITIAL_SESSION

Deduplicates early events

05. SILENT REFRESH

TOKEN_REFRESHED

Updates token silently

06. SIGN OUT GUARD

Intentional Ref

Differentiates expired JWT

Resilient mobile state handling: The isInitializing state holds a native splash screen (RootSplash) until AsyncStorage hydration completes, preventing login screen flickers. Synchronized ref guards (intentionalSignOutRef) cleanly separate manual user sign-outs from involuntary session token expiration.

NATIVE BUILD COMPILATION

Reproducible Patches for React Native 0.76

patch-package · EAS Build APK

@react-native/codegen 0.76.9

Flow / TypeScript Type Parser Patch

Extends native codegen parsers to recognize TypeScript Readonly and ReadonlyArray aliases alongside Flow-specific $ReadOnly, preventing Android Gradle build failures during codegen.

@babel/runtime 7.29.7

Metro Bundler ESM / CommonJS Interop

Rewrites helper exports in interopRequireDefault to CommonJS compatible module.exports, resolving runtime freezes in Metro bundler evaluations on native Android APK runs.

DETERMINISTIC FINANCIAL ENGINE

7 Currencies · 3-Tier Budget Logic

CURRENCY-SPECIFIC PRECISION

7 global currencies with explicit 0-decimal precision for JPY.

Standardized across USD ($), EUR (€), GBP (£), MAD (DH), JPY (¥), CAD (CA$), and AUD (A$). Japanese Yen enforces 0 decimal places (e.g. ¥1,500), while all other 6 currencies preserve 2 decimal places.

3-TIER BUDGET THRESHOLDS

Deterministic status thresholds computed at 80% and 100% utilization.

The getBudgetStatus engine classifies spending: Healthy (< 80%), Warning (80% to 99.9%), and Over Budget (≥ 100%). Sanitized JSON data export via Expo FileSystem & Sharing strictly omits auth tokens and session keys.

AUTOMATED VERIFICATION HARNESS

114 Passing Tests Across 11 Dedicated Suites

jest --runInBand · 100% Pass Rate

114

Passing Tests

0 failures, 100% green

Test Suites

Math, auth & services

RLS Protected Tables

Verified auth.uid() isolation

100%

Pass Rate

Jest 29.7 & jest-expo 52

The automated test harness rigorously asserts financial balance calculations, JPY 0-decimal formatting, local date parsing, sanitized JSON exports, chart accessibility labels, category invariants, asynchronous authentication lifecycle transitions, and PostgREST database error translation into safe user notifications.

05 / ENGINEERING DECISIONS

Technical decisions & trade-offs

DECISION 01

PostgreSQL Row Level Security as Primary Security Boundary

Enforce user isolation directly inside the PostgreSQL database engine using Supabase RLS policies tied to auth.uid(), rather than trusting mobile client query parameters.

Why this approach

Mobile clients operate outside a trusted server perimeter and can be decompiled or intercepted. Implementing RLS at the database engine guarantees that malicious API requests can never read or mutate another user's financial records.

DECISION 02

Decoupled Session Hydration from Navigation State

Maintain an isolated isInitializing boolean during AsyncStorage session restoration and deduplicate early subscription events before exposing user authentication state to React Navigation.

Why this approach

Coupling initial token loading with ongoing sign-in loading states caused root navigation containers to remount and flicker on app boot. Isolating initialization guarantees a seamless transition from splash screen to authenticated tab navigator.

DECISION 03

Reproducible Dependency Patching via patch-package

Commit versioned patch files in the patches/ directory and execute patch-package automatically during npm postinstall to resolve React Native 0.76 codegen and Babel runtime issues.

Why this approach

Forking upstream packages creates ongoing maintenance burdens and complicates updates. Using patch-package keeps package.json pointing to official registry releases while maintaining a deterministic, reproducible native Android build pipeline.

DECISION 04

Pure Utility Architecture for Financial Calculations

Structure all financial arithmetic, category aggregation, and currency formatting as pure, deterministic functions in dedicated utility modules completely independent of React component lifecycles.

Why this approach

Decoupling financial logic from UI rendering enables fast, deterministic automated testing via Jest without mocking mobile UI primitives, ensuring numerical invariants remain provable and regression-free.

06 / REFLECTIONS & LEARNINGS

What This Project Demonstrated

INSIGHT 01

Mobile Security Must Reside at the Database Layer

Building WealthFlow confirmed that mobile client code can never serve as a security boundary. Enforcing PostgreSQL Row Level Security (RLS) ensures user data isolation is guaranteed by the database engine regardless of client tampering or network interception.

INSIGHT 02

Navigating Native Toolchain Integration and Upstream Incompatibilities

Modern React Native development extends beyond component authoring: native Android compilation frequently exposes subtle codegen and module interop discrepancies. Diagnosing type parser errors and applying disciplined, reproducible patches via patch-package is essential for reliable native releases.

INSIGHT 03

Deterministic Verification Protects Critical Financial Logic

Isolating business arithmetic into pure functions backed by 114 automated Jest tests proved indispensable for maintaining calculation consistency across multi-currency formatting, budget consumption thresholds, and savings goal milestones.

INSPECT THE PROJECTSource, demo & implementation

Product Presentation Site

Dedicated WealthFlow landing page deployed on Vercel, with product overview, feature showcase, technical details, and Android preview download.

Public Source Code

Read the implementation and browse its history.

Multi-Device Responsive

Inspect the layouts in the screenshots and demo.

Implementation details

Explore the architecture and decisions in this case study.
